213 - oil cooler (engine) for Nissan Vanette Serena KVC23

	Frame / Series KVC23 / C23 body W (wagon ) engine CD20ET (2000 diesel turbo ﾃﾞﾝｾｲ) drive 2WD (two-wheel drive ) Manufacture period 01.1997 - 01.1998 grade FX transmission AT (automatic transmission )

---

Applies for models	Manufacture period	Spec
CD20T	05.1994 - 01.1997	オイル クーラー 本体
CD20ET	01.1997 - 01.1998	オイル クーラー 本体
CD20ET	01.1998 - ...	オイル クーラー 本体

Open full screen picture Up to the top

081208201E 081208251E 081208401F 081208601E 11914P - spacer 15238Q - bracket, oil filter 15238QA - bracket, oil filter 15241M - valve assembly, relief oil cooler 15241N - valve assembly, relief oil cooler 21304 - ring, rubber 21304M - O ring 21305 - cooler assembly, oil 21305D - stud, oil cooler 21305G - packing 21309E - gasket 21320 - bracket, oil cooler mounting 21334 - seal,O ring 21338 - cover assembly, oil cooler

---

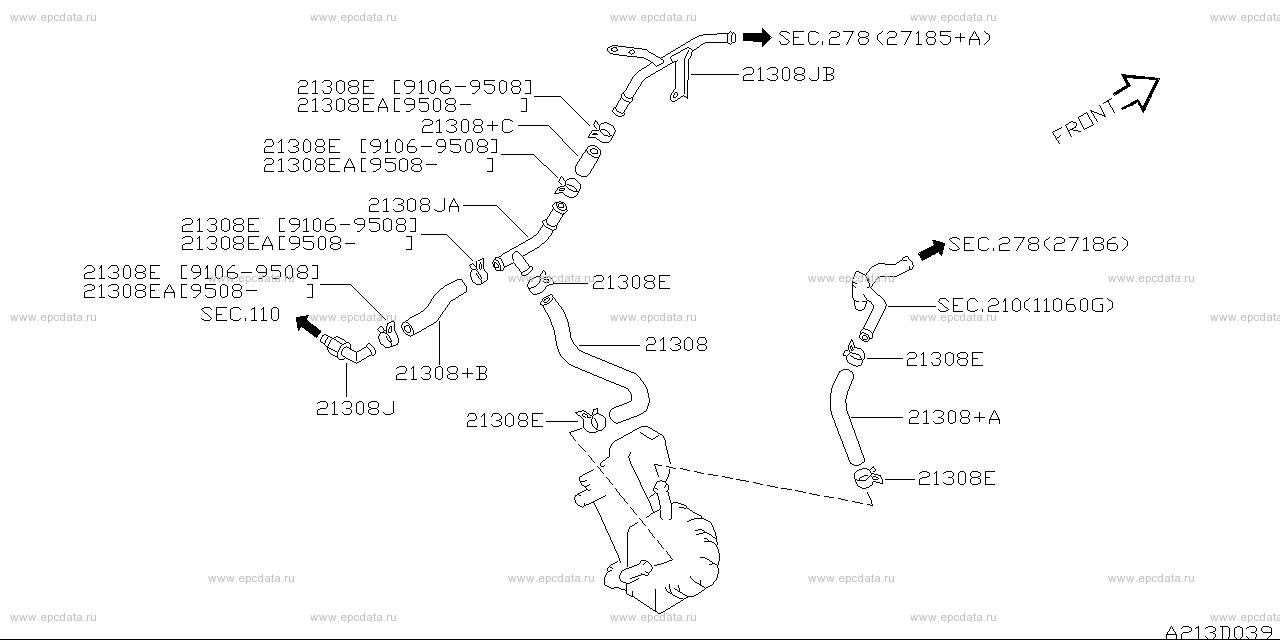

Applies for models	Manufacture period	Spec
CD20T	05.1994 - 01.1997	パイピング
CD20ET	01.1997 - 01.1998	パイピング
CD20ET	01.1998 - ...	パイピング

Open full screen picture Up to the top

21308 - hose, water 21308+A - hose, water 21308+B - hose, water 21308+C - hose, water 21308E - clamp 21308EA - clamp 21308J - connector 21308JA - connector 21308JB - connector

Vanette Serena KVC23
